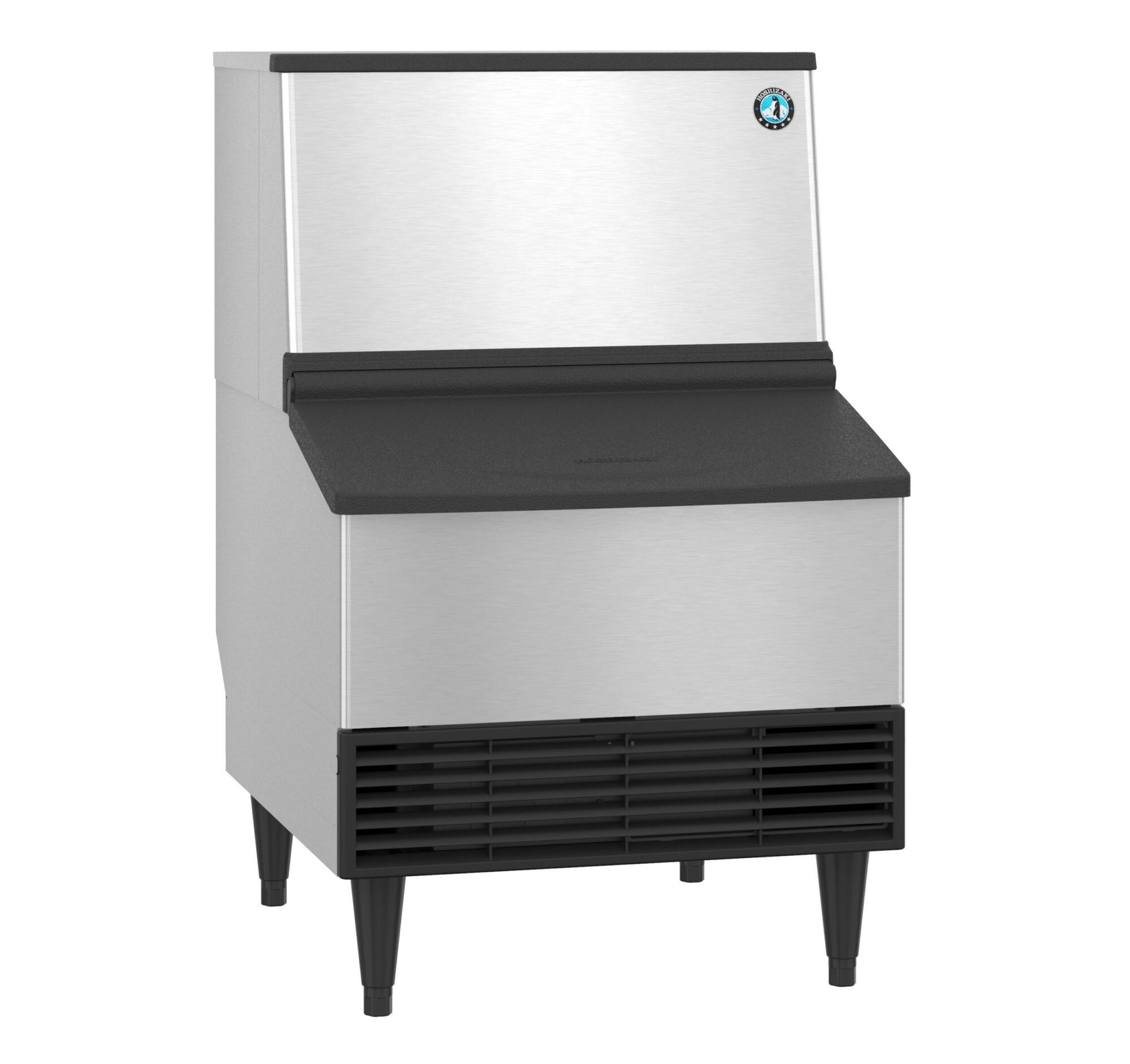

Hoshizaki KM-231BAJ Crescent Cuber Icemaker, Air-cooled

The Hoshizaki KM‑231BAJ is a high-capacity, space-saving undercounter ice maker designed for commercial settings. Its stainless steel construction and air-cooled, self-contained condenser deliver up to 213 lb of crescent‑shaped ice per day, with an integrated 80 lb bin for convenient storage

• Dimensions: 24″ W × 28″ D × 39″ H

• Ice Production: Up to 213 lb per 24 hours (147 lb certified at 90°/70°)

• Storage Bin Capacity: 80 lb (≈2.7 cu ft)

• Ice Type: Crescent-shaped cubes

• Cooling System: Air-cooled with front‑in / front‑out airflow for tight-space installations

• Construction: Heavy-duty stainless steel exterior and evaporator

• Maintenance Aids: Removable air filter, ADA-compliant bin access, Cyclesaver™ design, EverCheck™ alert system

• Refrigerant: R‑404A (≈11.3 oz / 320 g)

• Electrical: 115 V ~ 60 Hz ~ 1 phase, draws 6.5 amps (max fuse 15 A), plugs into NEMA 5‑15P outlet, shipped with 6.5 ft cord; includes 6″ legs for clearance

• Power Usage: ~8.4 kWh per 100 lb at 90/70 conditions; rejects heat at ~3,750 BTU/hr

• Operating Conditions: Ambient 45–100 °F; water temp 45–90 °F; water pressure 10–113 psig; Voltage range 104–127 V

• Certifications: NSF, ETL (cETLus), UL listed; ADA-accessible design
